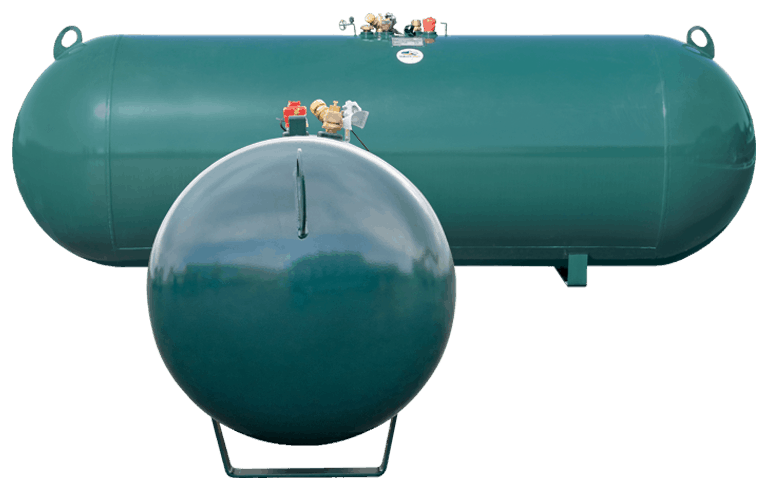

Aboveground/Underground Tanks

American Made, Expertly Crafted Aboveground/Underground Tanks

Aboveground/Underground “combination” tanks are for propane storage in residential or small commercial applications. These models can be installed above ground or as a shallow burial storage solution.
Made in the U.S.A. and crafted using only the finest materials, our Aboveground/Underground tanks will suit any residential and small commercial need.
At Quality Steel, we are proud of each tank that leaves one of our three strategically placed facilities. Our inside sales force works directly with our production teams at each location, consistently providing the best lead times in the industry. With our fully integrated teams, Quality Steel makes the buying experience seamless and hassle free from start to finish.
Looking for a propane tank? We can help direct you where to buy because we do not sell to the public. To quickly find a propane tank supplier near you, simply visit www.propane.com/where to buy.

Aboveground/Underground Tank Specifications

Underground/aboveground tank spec sheet

Aboveground/Underground Tank Specification Sheet

Download


120 – 1,990 WG Capacity

General Specifications

  • Conforms to the latest edition of ASME Rules for Construction of Pressure Vessels, Section VIII, Division 1
  • Complies with NFPA 58
  • Rated at 250 psig from -20° F to 125° F. All vessels registered with National Board. All standard vessels UL listed (UL 644 - Container Assemblies for LP-Gas). Standard vessels available with CRN Two service options available:
    • Option 1: Ready-to-bury underground option, coated with either powder coated phenolic epoxy finish or liquid applied epoxy primer coat followed by urethane top coat, supplied with composite AG/UG dome
    • Option 2: Aboveground option, coated with either powder coated TGIC polyester finish or liquid applied epoxy primer coat followed by urethane top coat, supplied with steel AG/UG dome
Aboveground/Underground tank spec sheet

Aboveground/Underground Tank Specification Sheet



* Leg spacing +/- 2”. Leg widths and spacing may vary based on mfg. location. Check with your salesperson for details. 120, 250, 320 wg. standard tanks - no holes in legs (one center hole on request). 500 and 1000 wg. standard tanks - 2 holes 16” on center. 1450 wg. and up as shown above.
** Full load and stack quantities vary by shipping location. Check with your salesperson for details.

Proudly Manufactured in the U.S.A.
